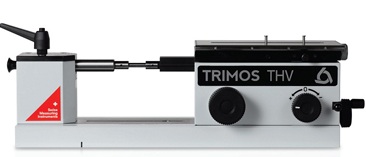

Swiss Trimos THV Small Length Measuring Instrument

Dantsin-Trimos' THV small length gauge is equipped with Heidenhain scale and electronic display unit, which can be used for small inspection of plug gauges and ring gauges.

Inquiry Online
Sales Manager: Mr Li
Cell Phone:18621180929
Email: Tim@labgaegs.com
Working time: 09:00-17:45

Swiss Trimos THV small length measuring instrument,It is equipped with Heidenhain scale and electronic display unit, which can be used for small inspection of plug gauges and ring gauges. The standard configuration is a carbide external diameter probe with a diameter of 6.5mm and a set of internal diameter probes with a diameter as small as 10mm. Smaller diameter probes are available on request.

Technical Parameters
■ Configure PC computer operating system or QC monitor
■ Absolute measurement range 0-50mm
■ Outer diameter measurement range 0-100mm
■ Measuring range of inner diameter 5-100mm

■ Resolution 0.1 / 0.01μm
■ Maximum error (grating) 0.2 + L (mm) / 250μm
■ Adjustable measuring force 0-4N
■ Function Computer operation, can provide various measuring software

THVR.0-50S
◆ Configure floating measuring table THV-250,
◆ 1 set of standard probe THV-20 (minimum diameter 10mm)
◆ 1 set of standard probes TELS50
◆ 1 TULM30.1 monitor stand

THV.0-50+P25+EL.D100/101
◆ Equipped with standard measuring table THV-1,
◆ Sylvac D80S display and P25 probe
◆ 1 set of standard probe THV-10 (minimum diameter 10mm)
◆ 1 set of standard probes TELS50

Measuring smooth and threaded plug gauge THV-115

Calibration Smooth Ring Gauge THV-260

Check and test micrometer / dialmeter THV-100 / THV-150

Adjustable constant measurement support THV-200

Measuring precision parts THV-100 / THV-101

Internal dimension measuring floating device
