Trimos LABC-Nano full-automatic universal length measuring machine adopts a new high-precision grating measuring system customized in cooperation with German Heidenhain. The grating length is 350 mm, and absolute measurement can be performed in a wide range. The base is made of special material casting, the instrument is stable and reliable, fully automatic measurement, fast speed and high precision, which can effectively eliminate manual operation errors.

Main features of Trimos LABC-Nano automatic universal length measuring machine:

● Absolute measurement range 350 mm
● Scale length 350 mm
● Resolution up to 0.001μm
● Measurement accuracy 0.07 + [L (mm) / 2000] μm
● Measuring force 0 -12N continuously adjustable
● Headstock movement (X) CNC fully automatic
● Y-axis and Z-axis of universal table CNC automatic measurement to find the inflection point can effectively eliminate manual operation error
● Workbench load 60kg
● Heidenhain high-precision new grating measuring system
● Built-in temperature compensation probe, real-time compensation

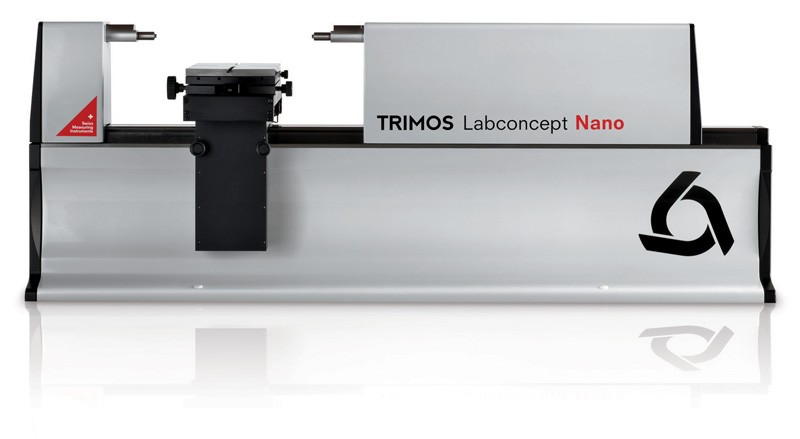

LABC-NANO main device photo

Detailed Technical Specifications, please click the panel "Instrument parameter".

TRIMOS LABC-NANO technical parameters
