The Trimos V4 Digital Altimeter has all the functions of Trimos V3 model altimeter.
In addition, V4 is equipped with a dual probe holder and air float to facilitate mobile measurement. The shortcut keys of the handle can be freely set to frequently used functions.
Sales Manager: Mr LiFor more than 40 years, Trimos has been committed to providing simple and practical instruments, which are highly needed in the production process. The display device is simple and clear, and the symbol identification is intuitive and easy to understand. The Trimos V4 Digital Altimeter is easy and quick to operate even for untrained personnel. The large-screen dual-line display panel will provide a good visibility in all lighting conditions, a feature unique to Trimos.
|

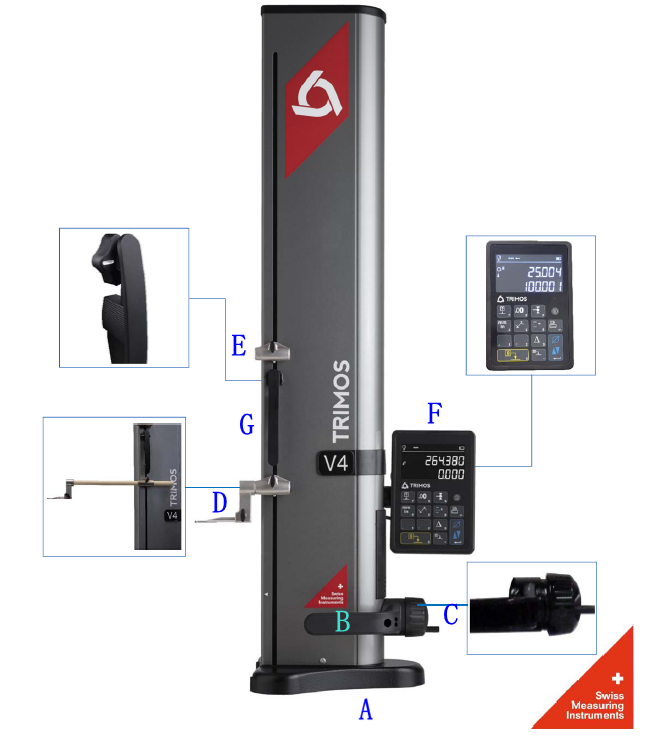

A. Cast iron base, excellent stability B. Air float and function shortcut button (V4) C. Measuring carriage moving handwheel D. interchangeable probes & sensors E. Application extension probe clamp (V4) F. Multi-function control and display G. force balance adjustment system |
|
■ Measurement range: 400 / 700mm ■ Easy and fast operation ■ The probe force can be adjusted continuously ■ Full charge time: 40h (lithium battery) |
■ Optional 300mm probe ■ Various accessories are optional ■ Humanized design, no need to use tools for force adjustment ■ RS232 & USB dual interface output |
