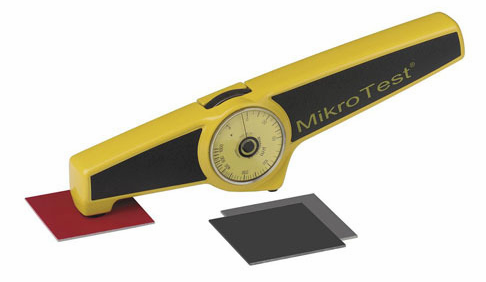

Mechanical coating thickness gauge: MikroTest

MIKROTEST coating thickness gauge, measuring the thickness of all non-magnetic coatings on steel (such as paint, powder coating, plastic, zinc, copper, tin and nickel).

Inquiry Online

Sales Manager: Mr Li
Cell Phone:18621180929
Email: Tim@labgaegs.com
Working time: 09:00-17:45

Product Detail Instrument Parameter Leave a Message Related Data

MikroTest coating thickness gauge、Measure the thickness of all non-magnetic coatings on steel (eg lacquer, powder coating, plastic, zinc, copper, tin and nickel). The measurement is fast, precise and non-destructive. For more than 30 years, MikroTest has become a widely used instrument for the automatic determination of coating thickness. It has a high level of magnetic coating thickness gauge in terms of process technology and precision. All instruments are DIN, ISO and ASTM compliant.

》Measuring principle《

The measurement of the coating thickness is based on magnetic attraction. The attraction is related to the distance between the permanent magnet and the steel substrate. This distance represents the thickness of the coating to be measured. The magnet is lifted from the surface by a spring connected to the magnet arm. The force required to lift the magnet is directly related to the angle of rotation of the torsion spring. This measurement principle is also particularly suitable for electroplated nickel on copper, aluminum and other non-ferrous metals. Germany's EPK MikroTest mechanical coating thickness gauge, unambiguously measure the thickness of the coating on steel: electroplated layer, electroplated nickel layer, phosphating film paint, powder coating plastic, rubber and so on. All instruments are DIN, ISO and ASTM compliant. Fully automatic operation.

Features

● Automatic measurement does not cause erroneous operation
● Easy to master and with high precision
● No need to calibrate, set, and test easily
● No battery or other power source required
● Automatically report thickness readings
● With a non-destructive probe, it's easy to measure
● Metal armor for outdoor use
● Resistance to mechanical shock, acid and solvent corrosion
● The balancing device eliminates the influence of gravity and can be accurately measured in any direction and tube

The German EPK company MikroTest is a coating thickness gauge that accurately measures the thickness of the coating on steel:

● Electroplated layer, electroplated nickel layer, phosphate film
● Paint, powder coating
● Plastic, rubber

型號	測量范圍	讀值精度	*小測量區 直徑	*小半徑		基體*小厚度	適合用于
型號	測量范圍	讀值精度	*小測量區 直徑	凸	凹	基體*小厚度	適合用于
MikroTest G 6	0－100μm	1μm或5％讀值	20mm	5mm	25mm	0.5mm	鋼、鐵上電鍍層、漆、搪瓷、塑料、橡膠層
MikroTest F 6	0－1000μm	5μm或5％讀值	30mm	8mm	25mm	0.5mm
MikroTest S3 6	0.2－3mm	5％讀值	30mm	15mm	25mm	1.0mm
MikroTest S5 6	0.5－5mm	5％讀值	50mm	15mm	25mm	1.0mm
MikroTest S10 6	2.5－10mm	5％讀值	50mm	15mm	25mm	2.0mm
MikroTest S20 6	7.5－20mm	5％讀值	100mm	100mm	150mm	7.0mm
MikroTest NIFE50 6	0－50μm	2μm + 8％讀值	20mm	10mm	25mm	0.5mm	鐵上電鍍鎳
MikroTest NI50	0-50um	1μm或5％讀值	15mm	5mm	25mm	-	非鐵磁金屬基體上電鍍鎳
MikroTest NI100	0-100um	1μm或5％讀值	15mm	5mm	25mm	-	非鐵磁金屬基體上電鍍鎳
